Linear Approximation

Version .92 for MapleVR7

Summary

This worksheet covers some examples of:
tangent planes.

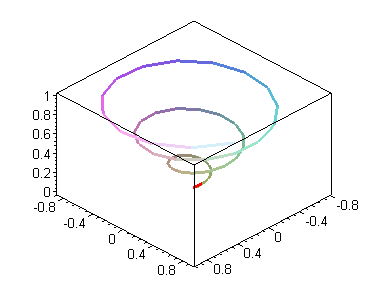

tangent lines.
efficient generation of the linear approximation at a point to a
function using Maple.
comparison of a function from R^2 to R^2 with its linear
approximation.

> with(plots): with(plottools):

Warning, the name changecoords has been redefined

> setoptions3d(axes=framed);

A Parabloid.

> graph1 := plot3d(x^2+y^2,x=-2..2,y=-2..2,view= -3..3,style=patchcontour):

The tangent plane through (1,1,2).

> graph2 := plot3d(2*x+2*y-2,x=-2..2,y=-2..2,grid=[5,5],style=wireframe):

> point1 := polyhedraplot([1,1,2],polyscale=.1,polytype=hexahedron,color=red):

> display3d({point1,graph1,graph2},axes=framed,orientation=[52,18]);

A Saddle.

> graph3 := plot3d(x^2-y^2,x=-2..2,y=-2..2,view = -2..2,style=patchcontour):

The tangent plane through (-1,0,1).

> graph4 := plot3d(-2*x-1,x=-2..2,y=-2..2,grid=[10,10],style=wireframe):

> point2 := polyhedraplot([-1,0,1],polyscale=.1,polytype=hexahedron,color=red):

> display3d({point2,graph3,graph4},axes=framed,orientation=[73,60]);

Transformations.

Load the packages.

Load transformation functions.
Change Pacific below to the name of your machine :

> read `/othermaple/transform_plots.txt` ;

				Plot Transformation Package Version 1.0

This set of functions aids in transforming two dimensional

plots by functions from R^2 to R^2.

Basic examples include:

		P1 := plot(x^2,x=-1..1);

		transform_plot(P1,[exp(x)*cos(y),exp(x)*sin(y)],[x,y]);

to transform the graph of the parabola y = x^2 by the map

(x,y) -> [exp(x)*cos(y),exp(x)*sin(y)].

and

		transform_rect([2.,2.],[1.,1.],[x^2-y^2,2*x*y],[x,y]);

to display the rectangle with corners [1,1] and [2,2]

together with the image of its boundary under the map

(x,y) -> [x^2-y^2,2*x*y].

Other routines are:

		rect_plot([2,4],[3,1]);

to display the rectangle with corners [2,4] and [3,1] and

		help_transform_plots();

to display this message.

Load linear algebra package.

> with(linalg):

Warning, the protected names norm and trace have been redefined and unprotected

Plot Transformation by Function.

Enter an R^2 valued expression as a list.

> F := [x*cos(y),x*sin(y)];

> transform_rect([.9,.9],[1,1],F,[x,y]);

Plot Transformation by Linear Approximation.

Compute the jacobian.

> F_deriv := jacobian(F,[x,y]);

A helper function to evaluate at (.9,.9).

> eval_fcn := a -> evalf(subs(x=.9,y=.9,a));

E valuate each entry of F_deriv at the point (.9,.9).

> L := map(eval_fcn,F_deriv);

> val := eval_fcn(F);

Linear approximation.

> L_expn :=evalm(L &* vector([x-.9,y-.9])+ val);

Note the similarity of the image under the linear transformation to the
image under the original function.

> transform_rect([.9,.9],[1,1],L_expn,[x,y]);

Maple Syntax: An aside on map and map2:

If you want to apply the same function to each entry of a compount object
such as a list, vector, or matrix, then you need to explictly tell Maple
this, using the functions map or map2.

Map applies its first entry (a function) to each operant of its second
argument (e.g. a matrix) and tacks on any additional arguments to each
function call. For example:

> aa := [seq(x*y+ Pi/i^2,i=1..3)];

> map(evalf,aa);

Map2 is like map except that it applies its first argument (a function like
the substitution function subs) to each operand of its third argument
(e.g. the list) using map2's second argument (e.g. a set of substitutions}
as the first argument of each function call.
Thus the example below substitutes x=u*v and y = u+v in each entry of
the list aa.

> map2(subs,{x=u*v,y=u+v},aa);
